A 300

specifications

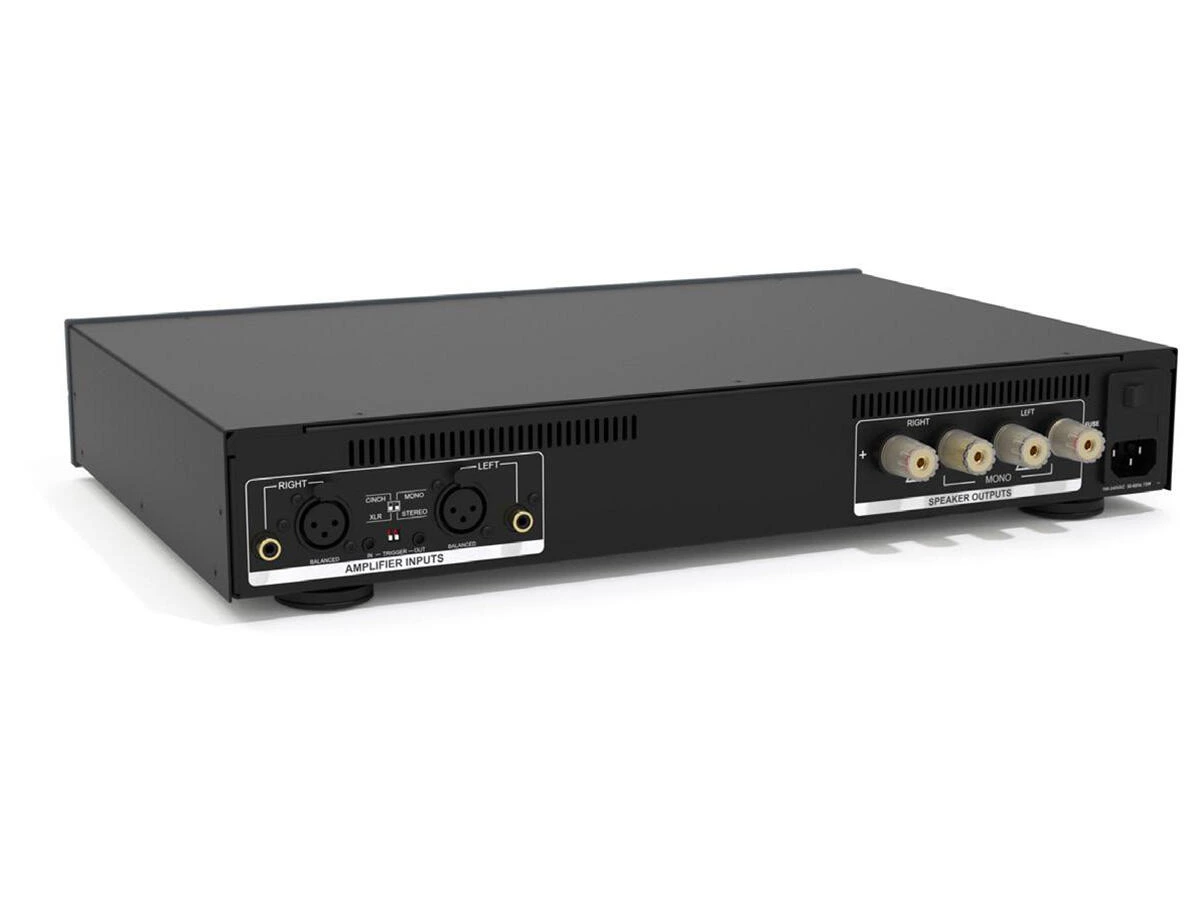

The power amplifier A300 is an essential component for any audiophile looking to enjoy an immersive sound experience. Designed to provide a power output of 2x 130 W, this amplifier allows for a captivating sound experience. Whether you are listening to music from a vinyl turntable, CD player, or digital files, the A300 ensures exceptional sound quality, with precise frequency response and remarkable dynamics.

• Type: Power stereo amplifier
• Nominal power Wrms into 4 & 8 Ω Class D: 2x 130 W @ THD=1 % (clipping) 2 channels in operation
• Harmonic distortion (THD) at 1 W into 8 Ω: < 0.003 % @ 1 kHz
• Intermodulation distortion (IMD SMPTE) at 100 W: < 0.01 %
• Nominal power Wrms / bridge mode into 8 Ω: 250 W / 500 W peak with CF=12 dB
• Power consumption (230 Vac / 120 Vac): 60 W with PF* = 0.96 à Pmax / 8 into 4 Ω 2 channels
• Number of inputs: 1x RCA Stereo + 1x XLR Stereo + trigger In & Out
• Input impedance: 1 MΩ
• Sensitivity (V): 9.5 dBu (Bal.), 3.5 dBu (unbal.) (2.3 V / 1.15 V)
• Pulse rise time (μs): 5 μs at Pmax into 8 Ω
• Bandwidth: 1.6 Hz - 65 kHz @ -3 dB under 4 Ω
• Signal-Noise ratio (Dynamic): 119 dB (Balanced input) at Pmax in stereo mode
• Max operating temperature: 40° C
• Output configuration: Stereo / Bridge mono
• Power consumption in stand-by mode: < 0.5 W
